Robust Performance Benchmarking: Earthkit-Climate vs Xclim¶
This notebook provides a robust comparative analysis of climate indicator calculations using:
Earthkit-Climate (Lazy): Standard wrapper usage.
Earthkit-Climate (Optimized): With pre-computation of percentiles and manual re-chunking (
time: -1).Xclim (Direct): Direct optimized usage of
xclim.indices.Xclim + Flox:
xclimwithfloxoptimization enabled for faster reductions.
Key features:
Statistical Sampling: \(N\) runs per test.

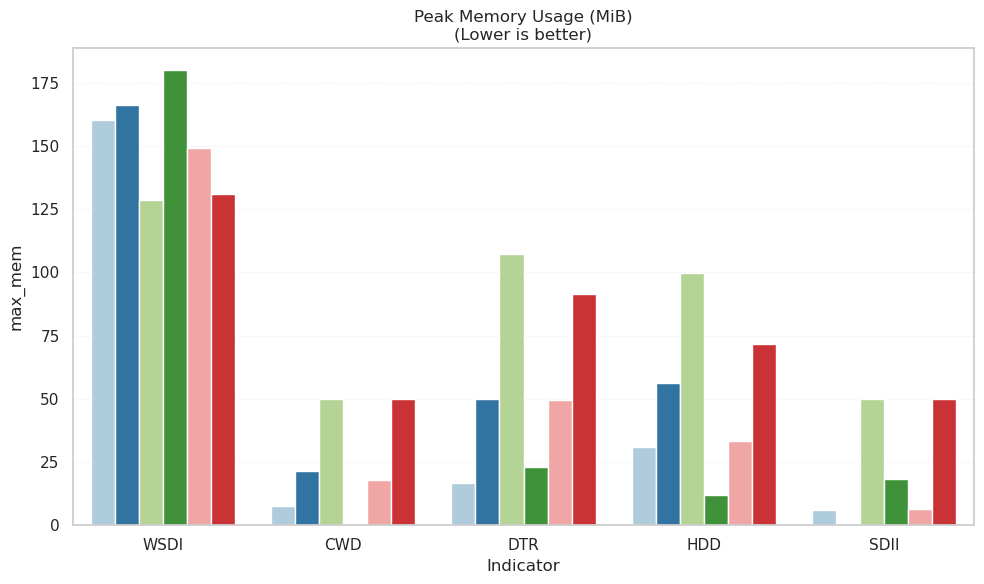

Resource Profiling: RAM peak & CPU usage.

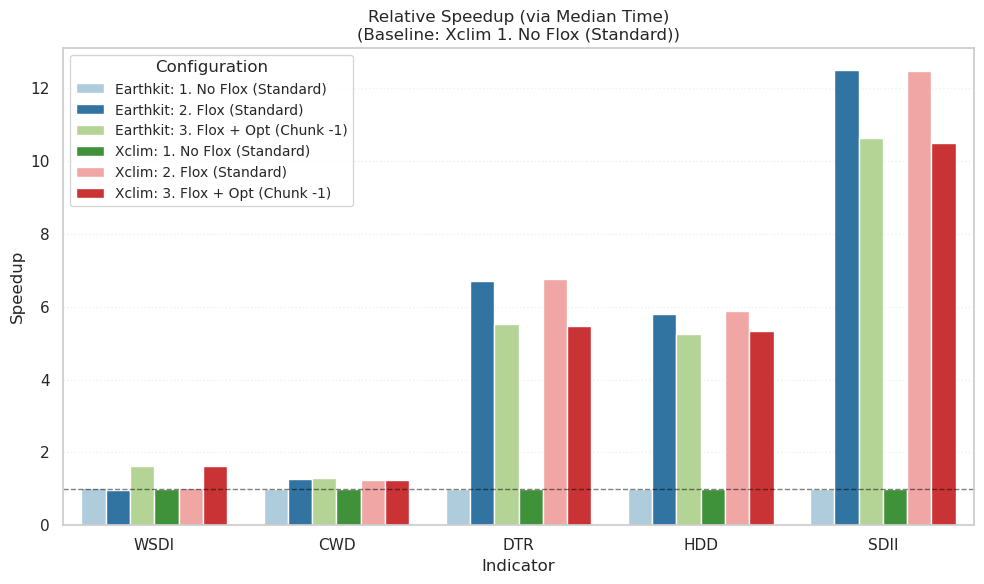

Visualization: Speedup comparison with error bars.
[11]:
import gc
import os
import time
import warnings
from typing import Any, Callable, Dict, List, Optional
import earthkit.data
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
import xarray as xr
import xclim.indicators
from IPython.display import Markdown, display
import earthkit.climate.indicators.precipitation as ek_pr
import earthkit.climate.indicators.temperature as ek_temp
from earthkit.climate.utils.percentile import percentile_doy
warnings.filterwarnings("ignore")
sns.set_theme(style="whitegrid")
# Configure robust caching to avoid re-downloading
cache_dir = os.path.expanduser("~/.cache/earthkit/data")
os.makedirs(cache_dir, exist_ok=True)
settings_earthkit = {
"cache-policy": "user",
"temporary-directory-root": cache_dir,
}
earthkit.data.config.set(settings_earthkit)
[12]:
def get_cpu_info() -> str:
"""
Extract the CPU model name from the system's /proc/cpuinfo.
This function parses the Linux virtual filesystem to find the
hardware model name of the processor.
Returns
-------
cpu_model : str
The name of the CPU model (e.g., 'Intel(R) Core(TM) i7-10700K').
Returns 'Unknown CPU' if the file is inaccessible or the entry
is missing.
"""
try:
if os.path.exists("/proc/cpuinfo"):
with open("/proc/cpuinfo", "r") as f:
for line in f:
if "model name" in line:
return line.split(":")[1].strip()
except Exception:
return "Unknown CPU"
return "Unknown CPU"
def get_ram_info() -> str:
"""
Extract the total system RAM from /proc/meminfo.
Parses the system memory information and converts the total memory
from kilobytes to gigabytes.
Returns
-------
ram_size : str
A formatted string representing total RAM in GB (e.g., '16.0 GB').
Returns 'Unknown RAM' if the file is inaccessible or the entry
is missing.
"""
try:
if os.path.exists("/proc/meminfo"):
with open("/proc/meminfo", "r") as f:
for line in f:
if "MemTotal" in line:
total_kb = int(line.split()[1])
return f"{total_kb / 1024 / 1024:.1f} GB"
except Exception:
return "Unknown RAM"
return "Unknown RAM"
# --- Execution Logic ---
cpu_model: str = get_cpu_info()
ram_size: str = get_ram_info()
display(
Markdown(f"""
## Resources Used
### Hardware Configuration
The performance analysis was conducted on the following hardware (dynamically detected):
- **CPU**: {cpu_model}
- **RAM**: {ram_size}
""")
)
[13]:
# Dataset URLs
DATASET_URLS = [
"https://sites.ecmwf.int/repository/earthkit-climate/tasmax_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_historical.nc",
"https://sites.ecmwf.int/repository/earthkit-climate/tasmax_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
"https://sites.ecmwf.int/repository/earthkit-climate/tasmin_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
"https://sites.ecmwf.int/repository/earthkit-climate/pr_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
]
def format_size(size_bytes: float) -> str:
"""
Convert a byte size into a human-readable string.
Parameters
----------
size_bytes : float
File size in bytes.
Returns
-------
str
Size formatted as B, KB, MB, or GB.
"""
for unit in ["B", "KB", "MB", "GB"]:
if size_bytes < 1024:
return f"{size_bytes:.1f} {unit}"
size_bytes /= 1024
return f"{size_bytes:.1f} TB"
def extract_dataset_info(url: str) -> Dict[str, Any]:
"""
Extract key metadata information from a NetCDF dataset available via URL.
Parameters
----------
url : str
URL to the NetCDF dataset.
Returns
-------
dict
Dictionary containing:
- Variable
- Scenario
- Description
- Dimensions
- Size
- Status ("Cached" or "Remote")
- URL
"""
ds = earthkit.data.from_source("url", url)
# Detect file size & cache status
if getattr(ds, "path", None) and os.path.exists(ds.path):
size = format_size(os.path.getsize(ds.path))
status = "Cached"
else:
size = "Unknown"
status = "Remote"
# Convert to xarray
xr_ds = ds.to_xarray()
# Extract primary variable
variables = list(xr_ds.data_vars)
variable = f"`{variables[0]}`" if variables else "Unknown"
# Scenario metadata
scenario = xr_ds.attrs.get("scenario", "Unknown")
# Dimension string, e.g. "(time: 365, lat: 180, lon: 360)"
dims_str = "(" + ", ".join(f"{k}: {v}" for k, v in xr_ds.dims.items()) + ")"
return {
"Variable": variable,
"Scenario": scenario,
"Dimensions": dims_str,
"Size": size,
"Status": status,
"URL": url,
}
def generate_dataset_table(urls: List[str]) -> str:
"""
Create a Markdown table summarizing metadata for a list of dataset URLs.
Parameters
----------
urls : list of str
List of dataset URLs.
Returns
-------
str
A Markdown-formatted table of dataset metadata.
"""
header = (
"| Variable | Scenario | Dimensions | Size | Status | URL |\n"
"|----------|----------|------------|------|--------|-----|\n"
)
rows = []
for url in urls:
info = extract_dataset_info(url)
rows.append(
f"| {info['Variable']} | {info['Scenario']} | "
f"{info['Dimensions']} | {info['Size']} | {info['Status']} | "
f"[Download]({info['URL']}) |"
)
return header + "\n".join(rows)
# Display Markdown report
display(
Markdown(
f"""
### Dataset Information
The analysis uses the following climate datasets derived from CMIP6 projections
(ACCESS-CM2 model, DeepESD downscaling). These datasets are hosted in the ECMWF
repository and are automatically downloaded or cached by **earthkit-data**.
{generate_dataset_table(DATASET_URLS)}
> **Note**: Dimensions and sizes are extracted dynamically. The first run may
download the files.
"""
)
)
Dataset Information¶
The analysis uses the following climate datasets derived from CMIP6 projections (ACCESS-CM2 model, DeepESD downscaling). These datasets are hosted in the ECMWF repository and are automatically downloaded or cached by earthkit-data.
Variable |
Scenario |
Dimensions |
Size |
Status |
URL |
|---|---|---|---|---|---|
|
historical |
(time: 7305, lat: 48, lon: 84) |
67.3 MB |
Cached |
|
|
ssp585 |
(time: 14610, lat: 48, lon: 84) |
126.9 MB |
Cached |
|
|
ssp585 |
(time: 14610, lat: 48, lon: 84) |
132.1 MB |
Cached |
|
|
ssp585 |
(time: 14610, lat: 48, lon: 84) |
111.5 MB |
Cached |
Note: Dimensions and sizes are extracted dynamically. The first run may download the files.
1. Benchmarking Engine¶
Helper functions to run tests multiple times, capture statistics, and profile resources.
[14]:
import threading
from typing import Any, Dict, List
import psutil
class ResourceMonitor(threading.Thread):
def __init__(self, interval=0.1):
self.interval = interval
self.stop_event = threading.Event()
self.memory_usage = []
self.cpu_usage = []
self.process = psutil.Process()
super().__init__()
def run(self):
while not self.stop_event.is_set():
try:
# RSS Memory in MiB
mem = self.process.memory_info().rss / (1024 * 1024)
self.memory_usage.append(mem)
# CPU Percent (blocking for interval would slow main thread, so we sleep manually)
# self.cpu_usage.append(self.process.cpu_percent(interval=None))
except Exception:
pass
time.sleep(self.interval)
def stop(self):
self.stop_event.set()
def benchmark_function(
func: Callable[..., Any], kwargs: Dict[str, Any], n_repeats: int = 5, warmup: bool = True
) -> Dict[str, float]:
"""
Run a function N times with robust profiling (Warm-up + High-Freq Sampling).
Parameters
----------
func : Callable
The function to benchmark.
kwargs : Dict
Arguments for the function.
n_repeats : int
Number of measurement runs.
warmup : bool
If True, runs the function once silently before measuring to exclude JIT/Import costs.
Returns
-------
stats : Dict
'mean_time', 'median_time', 'std_time', 'max_mem', 'mean_mem_peak'
"""
# 1. Warm-up (Silent)
if warmup:
print(f" Warm-up run for {func.__name__}...")
try:
# Run without monitoring
res = func(**kwargs)
if hasattr(res, "compute"):
res.compute()
elif hasattr(res, "to_xarray"):
res.to_xarray().compute()
except Exception as e:
print(f" Warm-up warning: {e}")
# Force GC after warmup
gc.collect()
times: List[float] = []
mem_peaks: List[float] = []
print(f"Benchmarking {func.__name__} ({n_repeats} runs)...")
for i in range(n_repeats):
gc.collect()
# Start Monitor (10ms interval)
monitor = ResourceMonitor(interval=0.1)
# Capture baseline memory
baseline_mem = psutil.Process().memory_info().rss / (1024 * 1024)
monitor.start()
start_time = time.perf_counter()
# --- Computation ---
try:
res = func(**kwargs)
if hasattr(res, "compute"):
res.compute()
elif hasattr(res, "to_xarray"):
res.to_xarray().compute()
except Exception as e:
print(f" Run {i + 1} Failed: {e}")
monitor.stop()
continue
# -------------------
end_time = time.perf_counter()
monitor.stop()
monitor.join()
duration = end_time - start_time
# Calculate Peak Memory Delta
observed_mems = monitor.memory_usage
if observed_mems:
# We want the peak usage *induced* by the function
# Peak Delta = Max(Observed) - Baseline
# Normalized Peak: (Max - Baseline)
peak_delta = max(observed_mems) - baseline_mem
# Clamp to 0
if peak_delta < 0:
peak_delta = 0
else:
peak_delta = 0.0
times.append(duration)
mem_peaks.append(peak_delta)
print(f" Run {i + 1}: {duration:.4f}s, Mem Peak Delta: {peak_delta:.2f} MiB")
if not times:
return {"mean_time": 0.0, "max_mem": 0.0}
return {
"mean_time": float(np.mean(times)),
"median_time": float(np.median(times)),
"std_time": float(np.std(times)),
"max_mem": float(np.max(mem_peaks)),
"mean_mem": float(np.mean(mem_peaks)),
}
2. Data Management¶
Load CMIP6 datasets and ensure unit compatibility.
[15]:
URLS = {
"tasmax_hist": "https://sites.ecmwf.int/repository/earthkit-climate/tasmax_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_historical.nc",
"tasmax_ssp": "https://sites.ecmwf.int/repository/earthkit-climate/tasmax_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
"tasmin_ssp": "https://sites.ecmwf.int/repository/earthkit-climate/tasmin_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
"pr_ssp": "https://sites.ecmwf.int/repository/earthkit-climate/pr_gridded_day_CMIP6_ACCESS-CM2_r1i1p1f1_deepESD_day_ssp585.nc",
}
def load_data() -> Dict[str, xr.Dataset]:
"""
Load climate datasets from remote URLs using earthkit-data.
Iterates through a predefined global dictionary of URLs, downloads
the data sources, and converts them into xarray Datasets.
Returns
-------
datasets : Dict[str, xr.Dataset]
A dictionary where keys match the source identifiers and values
are the loaded xarray Datasets.
Raises
------
NameError
If `URLS` is not defined in the global scope.
"""
print("Loading datasets via earthkit...")
datasets: Dict[str, xr.Dataset] = {}
for key, url in URLS.items():
# earthkit.data.from_source returns a wrapper that to_xarray() converts
ds = earthkit.data.from_source("url", url).to_xarray()
datasets[key] = ds
return datasets
data_cache = load_data()
Loading datasets via earthkit...
3. Contender Implementations¶
We wrap each library’s call in a uniform function signature.
[16]:
from contextlib import nullcontext
from typing import Any, Callable, Dict
import xarray as xr
def run_climate_indicator(func: Callable[..., Any], kwargs: Dict[str, Any], use_flox: Optional[bool] = None) -> Any:
"""
Unified execution wrapper for climate indicator functions with configurable backend options.
This function streamlines the benchmarking process by dynamically handling
Xarray global options (specifically 'flox' optimization) via a context manager.
Parameters
----------
func : Callable[..., Any]
The indicator function to execute (e.g., from Earthkit or Xclim).
kwargs : Dict[str, Any]
A dictionary of keyword arguments required by the `func` (e.g., input datasets,
thresholds, frequencies).
use_flox : bool, optional
Controls the 'use_flox' option in Xarray for accelerated GroupBy operations:
- True: Explicitly enables Flox optimization.
- False: Explicitly disables Flox (forces legacy implementation).
- None: Uses the current environment's default configuration (no context change).
By default, None.
Returns
-------
Any
The result of the indicator calculation (typically an xarray.DataArray or Dataset).
"""
# Determine context: set options if boolean, otherwise do nothing (nullcontext)
ctx = xr.set_options(use_flox=use_flox) if use_flox is not None else nullcontext()
with ctx:
return func(**kwargs)
4. Execution Loop¶
We define the specific configurations for WSDI, CWD, DTR, HDD, SDII.
[17]:
def get_named_runner(name: str, target_runner: Callable, **kwargs) -> Callable:
"""
Creates a 0-argument wrapper with a custom `__name__`.
Renamed the second argument to 'target_runner' to avoid collision
with the 'func' argument inside **kwargs.
"""
def wrapper():
# Ahora llamamos a target_runner pasándole los kwargs (que contienen 'func')
return target_runner(**kwargs)
wrapper.__name__ = name
return wrapper
[20]:
results_data = []
# --- 1. Data Preparation ---
tasmax_ssp = data_cache["tasmax_ssp"]["tasmax"]
tasmin_ssp = data_cache["tasmin_ssp"]["tasmin"]
pr_ssp = data_cache["pr_ssp"]["pr"]
# Pre-calculate percentile for WSDI
print("Pre-calculating 90th percentile for Optimized WSDI...")
per_90 = percentile_doy(data_cache["tasmax_hist"]["tasmax"], per=90)
per_90.name = "tasmax_per"
# --- 1b. Optimized Configuration (Chunk -1) ---
print("Configuring Optimized Benchmarks (Chunk -1, No Persist)...")
# We remove .persist() to include I/O overhead and compare fairly with Lazy
tasmax_ssp_opt = tasmax_ssp.chunk({"time": -1})
tasmin_ssp_opt = tasmin_ssp.chunk({"time": -1})
pr_ssp_opt = pr_ssp.chunk({"time": -1})
# --- 2. Define Benchmarks (Symmetric Structure) ---
benchmarks = [
{
"name": "WSDI",
"ek_func": ek_temp.warm_spell_duration_index,
"xi_func": xclim.indicators.atmos.warm_spell_duration_index,
# Earthkit Arguments
"ek_args": {
"lazy": {"ds": xr.merge([data_cache["tasmax_ssp"], per_90]), "freq": "MS"},
"optimized": {"ds": xr.merge([tasmax_ssp_opt, per_90]).chunk({"time": -1}), "freq": "MS"},
},
# Xclim Arguments (Now with dual structure)
"xi_args": {
"lazy": {"tasmax": tasmax_ssp, "tasmax_per": per_90, "freq": "MS"},
"optimized": {"tasmax": tasmax_ssp.chunk({"time": -1}), "tasmax_per": per_90, "freq": "MS"},
},
},
{
"name": "CWD",
"ek_func": ek_pr.maximum_consecutive_wet_days,
"xi_func": xclim.indicators.atmos.maximum_consecutive_wet_days,
"ek_args": {
"lazy": {"ds": data_cache["pr_ssp"], "freq": "MS"},
"optimized": {"ds": pr_ssp_opt, "freq": "MS"},
},
"xi_args": {"lazy": {"pr": pr_ssp, "freq": "MS"}, "optimized": {"pr": pr_ssp_opt, "freq": "MS"}},
},
{
"name": "DTR",
"ek_func": ek_temp.daily_temperature_range,
"xi_func": xclim.indicators.atmos.daily_temperature_range,
"ek_args": {
"lazy": {"ds": xr.merge([data_cache["tasmax_ssp"], data_cache["tasmin_ssp"]]), "freq": "MS"},
"optimized": {"ds": xr.merge([tasmax_ssp_opt, tasmin_ssp_opt]), "freq": "MS"},
},
"xi_args": {
"lazy": {"tasmax": tasmax_ssp, "tasmin": tasmin_ssp, "freq": "MS"},
"optimized": {"tasmax": tasmax_ssp_opt, "tasmin": tasmin_ssp_opt, "freq": "MS"},
},
},
{
"name": "HDD",
"ek_func": ek_temp.heating_degree_days,
"xi_func": xclim.indicators.atmos.heating_degree_days,
"ek_args": {
"lazy": {"ds": ((tasmax_ssp + tasmin_ssp) / 2).to_dataset(name="tas"), "freq": "MS"},
"optimized": {"ds": ((tasmax_ssp_opt + tasmin_ssp_opt) / 2).to_dataset(name="tas"), "freq": "MS"},
},
"xi_args": {
"lazy": {"tas": (tasmax_ssp + tasmin_ssp) / 2, "freq": "MS"},
"optimized": {"tas": (tasmax_ssp_opt + tasmin_ssp_opt) / 2, "freq": "MS"},
},
},
{
"name": "SDII",
"ek_func": ek_pr.daily_precipitation_intensity,
"xi_func": xclim.indicators.atmos.daily_pr_intensity,
"ek_args": {
"lazy": {"ds": data_cache["pr_ssp"], "freq": "MS"},
"optimized": {"ds": pr_ssp_opt, "freq": "MS"},
},
"xi_args": {"lazy": {"pr": pr_ssp, "freq": "MS"}, "optimized": {"pr": pr_ssp_opt, "freq": "MS"}},
},
]
# --- 3. Run Loop (Symmetric Comparison) ---
for b in benchmarks:
print(f"\n=== Benchmarking {b['name']} ===")
# =========================================================
# BLOCK 1: EARTHKIT
# =========================================================
# 1. Earthkit: Standard (No Flox)
runner_ek_nf = get_named_runner(
f"run_earthkit_lazy_noflox_{b['name']}",
run_climate_indicator,
func=b["ek_func"],
kwargs=b["ek_args"]["lazy"],
use_flox=False,
)
res_ek_nf = benchmark_function(runner_ek_nf, {})
res_ek_nf.update({"Indicator": b["name"], "Library": "Earthkit", "Mode": "1. No Flox (Standard)"})
results_data.append(res_ek_nf)
# 2. Earthkit: Standard (With Flox)
runner_ek_fl = get_named_runner(
f"run_earthkit_lazy_flox_{b['name']}",
run_climate_indicator,
func=b["ek_func"],
kwargs=b["ek_args"]["lazy"],
use_flox=True,
)
res_ek_fl = benchmark_function(runner_ek_fl, {})
res_ek_fl.update({"Indicator": b["name"], "Library": "Earthkit", "Mode": "2. Flox (Standard)"})
results_data.append(res_ek_fl)
# 3. Earthkit: Optimized (Chunk -1) + Flox
runner_ek_opt = get_named_runner(
f"run_earthkit_opt_flox_{b['name']}",
run_climate_indicator,
func=b["ek_func"],
kwargs=b["ek_args"]["optimized"],
use_flox=True,
)
res_ek_opt = benchmark_function(runner_ek_opt, {}, n_repeats=5)
res_ek_opt.update({"Indicator": b["name"], "Library": "Earthkit", "Mode": "3. Flox + Opt (Chunk -1)"})
results_data.append(res_ek_opt)
# =========================================================
# BLOCK 2: XCLIM
# =========================================================
# 4. Xclim: Standard (No Flox)
runner_xc_nf = get_named_runner(
f"run_xclim_noflox_{b['name']}",
run_climate_indicator,
func=b["xi_func"],
kwargs=b["xi_args"]["lazy"], # <--- USING LAZY ARGS
use_flox=False,
)
res_xc_nf = benchmark_function(runner_xc_nf, {})
res_xc_nf.update({"Indicator": b["name"], "Library": "Xclim", "Mode": "1. No Flox (Standard)"})
results_data.append(res_xc_nf)
# 5. Xclim: Standard (With Flox)
runner_xc_fl = get_named_runner(
f"run_xclim_flox_{b['name']}",
run_climate_indicator,
func=b["xi_func"],
kwargs=b["xi_args"]["lazy"], # <--- USING LAZY ARGS
use_flox=True,
)
res_xc_fl = benchmark_function(runner_xc_fl, {})
res_xc_fl.update({"Indicator": b["name"], "Library": "Xclim", "Mode": "2. Flox (Standard)"})
results_data.append(res_xc_fl)
# 6. Xclim: Optimized (Chunk -1) + Flox
runner_xc_opt = get_named_runner(
f"run_xclim_opt_flox_{b['name']}",
run_climate_indicator,
func=b["xi_func"],
kwargs=b["xi_args"]["optimized"], # <--- USING OPTIMIZED ARGS
use_flox=True,
)
res_xc_opt = benchmark_function(runner_xc_opt, {}, n_repeats=5)
res_xc_opt.update({"Indicator": b["name"], "Library": "Xclim", "Mode": "3. Flox + Opt (Chunk -1)"})
results_data.append(res_xc_opt)
Pre-calculating 90th percentile for Optimized WSDI...
Configuring Optimized Benchmarks (Chunk -1, No Persist)...
=== Benchmarking WSDI ===
Warm-up run for run_earthkit_lazy_noflox_WSDI...
Benchmarking run_earthkit_lazy_noflox_WSDI (5 runs)...
Run 1: 95.0477s, Mem Peak Delta: 85.38 MiB
Run 2: 97.7674s, Mem Peak Delta: 136.30 MiB
Run 3: 94.7928s, Mem Peak Delta: 160.32 MiB
Run 4: 96.2381s, Mem Peak Delta: 76.02 MiB
Run 5: 100.2789s, Mem Peak Delta: 108.48 MiB
Warm-up run for run_earthkit_lazy_flox_WSDI...
Benchmarking run_earthkit_lazy_flox_WSDI (5 runs)...
Run 1: 100.9231s, Mem Peak Delta: 51.39 MiB
Run 2: 95.6108s, Mem Peak Delta: 88.91 MiB
Run 3: 106.4386s, Mem Peak Delta: 87.94 MiB
Run 4: 100.7570s, Mem Peak Delta: 2.66 MiB
Run 5: 104.0698s, Mem Peak Delta: 166.26 MiB
Warm-up run for run_earthkit_opt_flox_WSDI...
Benchmarking run_earthkit_opt_flox_WSDI (5 runs)...
Run 1: 59.4010s, Mem Peak Delta: 23.42 MiB
Run 2: 60.0811s, Mem Peak Delta: 99.04 MiB
Run 3: 60.3694s, Mem Peak Delta: 10.18 MiB
Run 4: 60.4882s, Mem Peak Delta: 128.80 MiB
Run 5: 60.5862s, Mem Peak Delta: 113.94 MiB
Warm-up run for run_xclim_noflox_WSDI...
Benchmarking run_xclim_noflox_WSDI (5 runs)...
Run 1: 94.4468s, Mem Peak Delta: 179.88 MiB
Run 2: 100.3204s, Mem Peak Delta: 117.65 MiB
Run 3: 98.2519s, Mem Peak Delta: 158.38 MiB
Run 4: 98.7358s, Mem Peak Delta: 148.62 MiB
Run 5: 96.9592s, Mem Peak Delta: 140.45 MiB
Warm-up run for run_xclim_flox_WSDI...
Benchmarking run_xclim_flox_WSDI (5 runs)...
Run 1: 90.7513s, Mem Peak Delta: 115.07 MiB
Run 2: 94.4029s, Mem Peak Delta: 52.20 MiB
Run 3: 96.7050s, Mem Peak Delta: 114.93 MiB
Run 4: 95.9556s, Mem Peak Delta: 149.26 MiB
Run 5: 96.8507s, Mem Peak Delta: 77.72 MiB
Warm-up run for run_xclim_opt_flox_WSDI...
Benchmarking run_xclim_opt_flox_WSDI (5 runs)...
Run 1: 59.5290s, Mem Peak Delta: 89.22 MiB
Run 2: 60.0085s, Mem Peak Delta: 131.08 MiB
Run 3: 60.2594s, Mem Peak Delta: 30.26 MiB
Run 4: 60.3024s, Mem Peak Delta: 29.35 MiB
Run 5: 60.6037s, Mem Peak Delta: 91.17 MiB
=== Benchmarking CWD ===
Warm-up run for run_earthkit_lazy_noflox_CWD...
Benchmarking run_earthkit_lazy_noflox_CWD (5 runs)...
Run 1: 25.7984s, Mem Peak Delta: 7.62 MiB
Run 2: 25.9442s, Mem Peak Delta: 0.38 MiB
Run 3: 26.0592s, Mem Peak Delta: 0.00 MiB
Run 4: 26.2207s, Mem Peak Delta: 0.12 MiB
Run 5: 26.1019s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_earthkit_lazy_flox_CWD...
Benchmarking run_earthkit_lazy_flox_CWD (5 runs)...
Run 1: 20.5405s, Mem Peak Delta: 0.00 MiB
Run 2: 20.5765s, Mem Peak Delta: 21.62 MiB
Run 3: 20.8313s, Mem Peak Delta: 0.00 MiB
Run 4: 20.8417s, Mem Peak Delta: 0.00 MiB
Run 5: 20.8313s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_earthkit_opt_flox_CWD...
Benchmarking run_earthkit_opt_flox_CWD (5 runs)...
Run 1: 20.4005s, Mem Peak Delta: 0.67 MiB
Run 2: 20.4653s, Mem Peak Delta: 49.93 MiB
Run 3: 19.9873s, Mem Peak Delta: 0.07 MiB
Run 4: 20.3613s, Mem Peak Delta: 3.94 MiB
Run 5: 20.1712s, Mem Peak Delta: 49.94 MiB
Warm-up run for run_xclim_noflox_CWD...
Benchmarking run_xclim_noflox_CWD (5 runs)...
Run 1: 25.9901s, Mem Peak Delta: 0.00 MiB
Run 2: 26.2468s, Mem Peak Delta: 0.00 MiB
Run 3: 26.1138s, Mem Peak Delta: 0.00 MiB
Run 4: 26.3420s, Mem Peak Delta: 0.00 MiB
Run 5: 26.2693s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_xclim_flox_CWD...
Benchmarking run_xclim_flox_CWD (5 runs)...
Run 1: 20.8982s, Mem Peak Delta: 0.00 MiB
Run 2: 20.7771s, Mem Peak Delta: 0.00 MiB
Run 3: 20.9738s, Mem Peak Delta: 0.00 MiB
Run 4: 21.0002s, Mem Peak Delta: 17.87 MiB
Run 5: 21.7872s, Mem Peak Delta: 8.28 MiB
Warm-up run for run_xclim_opt_flox_CWD...
Benchmarking run_xclim_opt_flox_CWD (5 runs)...
Run 1: 21.3257s, Mem Peak Delta: 49.94 MiB
Run 2: 21.9894s, Mem Peak Delta: 8.00 MiB
Run 3: 21.2518s, Mem Peak Delta: 7.94 MiB
Run 4: 21.2220s, Mem Peak Delta: 23.94 MiB
Run 5: 21.4322s, Mem Peak Delta: 1.12 MiB
=== Benchmarking DTR ===
Warm-up run for run_earthkit_lazy_noflox_DTR...
Benchmarking run_earthkit_lazy_noflox_DTR (5 runs)...
Run 1: 9.2593s, Mem Peak Delta: 16.62 MiB
Run 2: 9.2828s, Mem Peak Delta: 16.62 MiB
Run 3: 9.2531s, Mem Peak Delta: 7.25 MiB
Run 4: 9.2653s, Mem Peak Delta: 16.62 MiB
Run 5: 9.3646s, Mem Peak Delta: 16.62 MiB
Warm-up run for run_earthkit_lazy_flox_DTR...
Benchmarking run_earthkit_lazy_flox_DTR (5 runs)...
Run 1: 1.3767s, Mem Peak Delta: 24.89 MiB
Run 2: 1.3803s, Mem Peak Delta: 41.28 MiB
Run 3: 1.3897s, Mem Peak Delta: 41.25 MiB
Run 4: 1.3913s, Mem Peak Delta: 49.84 MiB
Run 5: 1.3873s, Mem Peak Delta: 41.55 MiB
Warm-up run for run_earthkit_opt_flox_DTR...
Benchmarking run_earthkit_opt_flox_DTR (5 runs)...
Run 1: 1.6778s, Mem Peak Delta: 107.46 MiB
Run 2: 1.7182s, Mem Peak Delta: 41.16 MiB
Run 3: 1.6794s, Mem Peak Delta: 91.50 MiB
Run 4: 1.6648s, Mem Peak Delta: 74.91 MiB
Run 5: 1.6657s, Mem Peak Delta: 91.50 MiB
Warm-up run for run_xclim_noflox_DTR...
Benchmarking run_xclim_noflox_DTR (5 runs)...
Run 1: 9.2579s, Mem Peak Delta: 16.62 MiB
Run 2: 9.2941s, Mem Peak Delta: 23.08 MiB
Run 3: 9.2964s, Mem Peak Delta: 8.25 MiB
Run 4: 9.3419s, Mem Peak Delta: 8.18 MiB
Run 5: 9.3060s, Mem Peak Delta: 16.83 MiB
Warm-up run for run_xclim_flox_DTR...
Benchmarking run_xclim_flox_DTR (5 runs)...
Run 1: 1.3991s, Mem Peak Delta: 41.55 MiB
Run 2: 1.3745s, Mem Peak Delta: 33.95 MiB
Run 3: 1.3680s, Mem Peak Delta: 41.54 MiB
Run 4: 1.3830s, Mem Peak Delta: 49.48 MiB
Run 5: 1.3745s, Mem Peak Delta: 16.72 MiB
Warm-up run for run_xclim_opt_flox_DTR...
Benchmarking run_xclim_opt_flox_DTR (5 runs)...
Run 1: 1.6835s, Mem Peak Delta: 91.50 MiB
Run 2: 1.6887s, Mem Peak Delta: 91.55 MiB
Run 3: 1.7050s, Mem Peak Delta: 91.44 MiB
Run 4: 1.7212s, Mem Peak Delta: 52.20 MiB
Run 5: 1.6964s, Mem Peak Delta: 91.56 MiB
=== Benchmarking HDD ===
Warm-up run for run_earthkit_lazy_noflox_HDD...
Benchmarking run_earthkit_lazy_noflox_HDD (5 runs)...
Run 1: 7.6595s, Mem Peak Delta: 0.00 MiB
Run 2: 7.7498s, Mem Peak Delta: 24.73 MiB
Run 3: 7.6312s, Mem Peak Delta: 30.79 MiB
Run 4: 7.6334s, Mem Peak Delta: 10.93 MiB
Run 5: 7.6688s, Mem Peak Delta: 30.75 MiB
Warm-up run for run_earthkit_lazy_flox_HDD...
Benchmarking run_earthkit_lazy_flox_HDD (5 runs)...
Run 1: 1.3248s, Mem Peak Delta: 46.03 MiB
Run 2: 1.2938s, Mem Peak Delta: 16.59 MiB
Run 3: 1.3048s, Mem Peak Delta: 41.57 MiB
Run 4: 1.3243s, Mem Peak Delta: 0.07 MiB
Run 5: 1.3109s, Mem Peak Delta: 56.11 MiB
Warm-up run for run_earthkit_opt_flox_HDD...
Benchmarking run_earthkit_opt_flox_HDD (5 runs)...
Run 1: 1.4628s, Mem Peak Delta: 16.78 MiB
Run 2: 1.4637s, Mem Peak Delta: 74.63 MiB
Run 3: 1.4424s, Mem Peak Delta: 71.88 MiB
Run 4: 1.4518s, Mem Peak Delta: 74.81 MiB
Run 5: 1.4362s, Mem Peak Delta: 99.88 MiB
Warm-up run for run_xclim_noflox_HDD...
Benchmarking run_xclim_noflox_HDD (5 runs)...
Run 1: 7.6122s, Mem Peak Delta: 0.00 MiB
Run 2: 7.6125s, Mem Peak Delta: 0.00 MiB
Run 3: 7.6941s, Mem Peak Delta: 8.38 MiB
Run 4: 7.7262s, Mem Peak Delta: 11.88 MiB
Run 5: 7.5845s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_xclim_flox_HDD...
Benchmarking run_xclim_flox_HDD (5 runs)...
Run 1: 1.2948s, Mem Peak Delta: 0.00 MiB
Run 2: 1.2911s, Mem Peak Delta: 0.00 MiB
Run 3: 1.2848s, Mem Peak Delta: 33.34 MiB
Run 4: 1.2892s, Mem Peak Delta: 16.48 MiB
Run 5: 1.2930s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_xclim_opt_flox_HDD...
Benchmarking run_xclim_opt_flox_HDD (5 runs)...
Run 1: 1.4343s, Mem Peak Delta: 0.09 MiB
Run 2: 1.4694s, Mem Peak Delta: 44.04 MiB
Run 3: 1.4299s, Mem Peak Delta: 49.88 MiB
Run 4: 1.4282s, Mem Peak Delta: 0.00 MiB
Run 5: 1.4291s, Mem Peak Delta: 71.88 MiB
=== Benchmarking SDII ===
Warm-up run for run_earthkit_lazy_noflox_SDII...
Benchmarking run_earthkit_lazy_noflox_SDII (5 runs)...
Run 1: 10.1665s, Mem Peak Delta: 6.00 MiB
Run 2: 10.2258s, Mem Peak Delta: 0.00 MiB
Run 3: 10.2883s, Mem Peak Delta: 0.00 MiB
Run 4: 10.2388s, Mem Peak Delta: 0.00 MiB
Run 5: 10.1664s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_earthkit_lazy_flox_SDII...
Benchmarking run_earthkit_lazy_flox_SDII (5 runs)...
Run 1: 0.8125s, Mem Peak Delta: 0.00 MiB
Run 2: 0.8110s, Mem Peak Delta: 0.00 MiB
Run 3: 0.8148s, Mem Peak Delta: 0.00 MiB
Run 4: 0.8239s, Mem Peak Delta: 0.00 MiB
Run 5: 0.8146s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_earthkit_opt_flox_SDII...
Benchmarking run_earthkit_opt_flox_SDII (5 runs)...
Run 1: 0.9460s, Mem Peak Delta: 31.91 MiB
Run 2: 0.9741s, Mem Peak Delta: 0.52 MiB
Run 3: 0.9659s, Mem Peak Delta: 49.93 MiB
Run 4: 0.9523s, Mem Peak Delta: 37.75 MiB
Run 5: 0.9575s, Mem Peak Delta: 50.05 MiB
Warm-up run for run_xclim_noflox_SDII...
Benchmarking run_xclim_noflox_SDII (5 runs)...
Run 1: 10.1138s, Mem Peak Delta: 18.46 MiB
Run 2: 10.2198s, Mem Peak Delta: 0.00 MiB
Run 3: 10.1793s, Mem Peak Delta: 0.00 MiB
Run 4: 10.1764s, Mem Peak Delta: 0.00 MiB
Run 5: 10.1534s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_xclim_flox_SDII...
Benchmarking run_xclim_flox_SDII (5 runs)...
Run 1: 0.8329s, Mem Peak Delta: 0.00 MiB
Run 2: 0.8163s, Mem Peak Delta: 0.00 MiB
Run 3: 0.8052s, Mem Peak Delta: 0.00 MiB
Run 4: 0.8053s, Mem Peak Delta: 6.38 MiB
Run 5: 0.8217s, Mem Peak Delta: 0.00 MiB
Warm-up run for run_xclim_opt_flox_SDII...
Benchmarking run_xclim_opt_flox_SDII (5 runs)...
Run 1: 0.9713s, Mem Peak Delta: 49.05 MiB
Run 2: 0.9530s, Mem Peak Delta: 0.00 MiB
Run 3: 0.9497s, Mem Peak Delta: 49.94 MiB
Run 4: 0.9755s, Mem Peak Delta: 49.93 MiB
Run 5: 0.9685s, Mem Peak Delta: 49.94 MiB
5. Results & Visualization¶
[21]:
# 1. Create DataFrame
df_res = pd.DataFrame(results_data)
# 2. Create a specific label for the Plot Legend (Library + Mode)
df_res["Label"] = df_res["Library"] + ": " + df_res["Mode"]
# 3. Calculate Speedup relative to 'Earthkit No Flox (Standard)' using MEDIAN time
# Robustness Update: We use Median Time for speedup calculation to be resistant to outliers.
df_res["Speedup"] = 0.0
baseline_mode = "1. No Flox (Standard)"
for indicator in df_res["Indicator"].unique():
# Find the baseline: Xclim + No Flox (as per original logic, though code comments said Earthkit)
# Let's double check the user intent. Usually Xclim NoFlox is the "base" reference.
# The original code searched for Library='Xclim'. We stick to that.
baseline_row = df_res.loc[
(df_res["Indicator"] == indicator) & (df_res["Library"] == "Xclim") & (df_res["Mode"] == baseline_mode)
]
if not baseline_row.empty:
# Use median_time for robust speedup
baseline_time = baseline_row["median_time"].values[0]
mask = df_res["Indicator"] == indicator
df_res.loc[mask, "Speedup"] = baseline_time / df_res.loc[mask, "median_time"]
print("\nBenchmarking Results (Robust Stats):")
display(df_res[["Indicator", "Library", "Mode", "median_time", "std_time", "max_mem", "Speedup"]])
# --- Plots ---
# Define a consistent order for the bars
hue_order = sorted(df_res["Label"].unique())
# Plot 1: Relative Speedup (Robust)
plt.figure(figsize=(10, 6))
sns.barplot(data=df_res, x="Indicator", y="Speedup", hue="Label", palette="Paired", hue_order=hue_order)
plt.title(f"Relative Speedup (via Median Time)\n(Baseline: Xclim {baseline_mode})")
plt.axhline(1.0, color="black", linestyle="--", alpha=0.5, linewidth=1)
plt.legend(title="Configuration", fontsize="small")
plt.grid(axis="y", linestyle=":", alpha=0.3)
plt.tight_layout()
plt.show()
# Plot 2: Peak Memory Usage
plt.figure(figsize=(10, 6))
sns.barplot(data=df_res, x="Indicator", y="max_mem", hue="Label", palette="Paired", hue_order=hue_order)
plt.title("Peak Memory Usage (MiB)\n(Lower is better)")
plt.legend().remove()
plt.grid(axis="y", linestyle=":", alpha=0.3)
plt.tight_layout()
plt.show()
Benchmarking Results (Robust Stats):
| Indicator | Library | Mode | median_time | std_time | max_mem | Speedup | |
|---|---|---|---|---|---|---|---|
| 0 | WSDI | Earthkit | 1. No Flox (Standard) | 96.238054 | 2.022403 | 160.316406 | 1.020926 |
| 1 | WSDI | Earthkit | 2. Flox (Standard) | 100.923075 | 3.648089 | 166.261719 | 0.973533 |
| 2 | WSDI | Earthkit | 3. Flox + Opt (Chunk -1) | 60.369373 | 0.427161 | 128.804688 | 1.627512 |
| 3 | WSDI | Xclim | 1. No Flox (Standard) | 98.251902 | 1.968112 | 179.878906 | 1.000000 |
| 4 | WSDI | Xclim | 2. Flox (Standard) | 95.955562 | 2.264089 | 149.257812 | 1.023931 |
| 5 | WSDI | Xclim | 3. Flox + Opt (Chunk -1) | 60.259380 | 0.359515 | 131.078125 | 1.630483 |
| 6 | CWD | Earthkit | 1. No Flox (Standard) | 26.059164 | 0.143695 | 7.625000 | 1.007200 |
| 7 | CWD | Earthkit | 2. Flox (Standard) | 20.831257 | 0.135888 | 21.617188 | 1.259971 |
| 8 | CWD | Earthkit | 3. Flox + Opt (Chunk -1) | 20.361283 | 0.174882 | 49.937500 | 1.289053 |
| 9 | CWD | Xclim | 1. No Flox (Standard) | 26.246779 | 0.125185 | 0.000000 | 1.000000 |
| 10 | CWD | Xclim | 2. Flox (Standard) | 20.973772 | 0.358413 | 17.867188 | 1.251410 |
| 11 | CWD | Xclim | 3. Flox + Opt (Chunk -1) | 21.325712 | 0.282060 | 49.937500 | 1.230757 |
| 12 | DTR | Earthkit | 1. No Flox (Standard) | 9.265321 | 0.040986 | 16.625000 | 1.003354 |
| 13 | DTR | Earthkit | 2. Flox (Standard) | 1.387280 | 0.005597 | 49.835938 | 6.701169 |
| 14 | DTR | Earthkit | 3. Flox + Opt (Chunk -1) | 1.677764 | 0.019465 | 107.460938 | 5.540945 |
| 15 | DTR | Xclim | 1. No Flox (Standard) | 9.296399 | 0.026865 | 23.082031 | 1.000000 |
| 16 | DTR | Xclim | 2. Flox (Standard) | 1.374482 | 0.010758 | 49.476562 | 6.763564 |
| 17 | DTR | Xclim | 3. Flox + Opt (Chunk -1) | 1.696448 | 0.013268 | 91.562500 | 5.479920 |
| 18 | HDD | Earthkit | 1. No Flox (Standard) | 7.659471 | 0.043146 | 30.785156 | 0.993867 |
| 19 | HDD | Earthkit | 2. Flox (Standard) | 1.310911 | 0.011830 | 56.113281 | 5.807026 |
| 20 | HDD | Earthkit | 3. Flox + Opt (Chunk -1) | 1.451769 | 0.010897 | 99.875000 | 5.243598 |
| 21 | HDD | Xclim | 1. No Flox (Standard) | 7.612493 | 0.054374 | 11.875000 | 1.000000 |
| 22 | HDD | Xclim | 2. Flox (Standard) | 1.291052 | 0.003433 | 33.339844 | 5.896351 |
| 23 | HDD | Xclim | 3. Flox + Opt (Chunk -1) | 1.429851 | 0.015745 | 71.875000 | 5.323978 |
| 24 | SDII | Earthkit | 1. No Flox (Standard) | 10.225849 | 0.046377 | 6.000000 | 0.995162 |
| 25 | SDII | Earthkit | 2. Flox (Standard) | 0.814624 | 0.004503 | 0.000000 | 12.492111 |
| 26 | SDII | Earthkit | 3. Flox + Opt (Chunk -1) | 0.957500 | 0.009923 | 50.054688 | 10.628070 |
| 27 | SDII | Xclim | 1. No Flox (Standard) | 10.176372 | 0.034716 | 18.457031 | 1.000000 |
| 28 | SDII | Xclim | 2. Flox (Standard) | 0.816276 | 0.010467 | 6.378906 | 12.466829 |
| 29 | SDII | Xclim | 3. Flox + Opt (Chunk -1) | 0.968494 | 0.010326 | 49.937500 | 10.507419 |
